puppet部署多台服务器

利用puppet实现自动化部署

配置前准备：

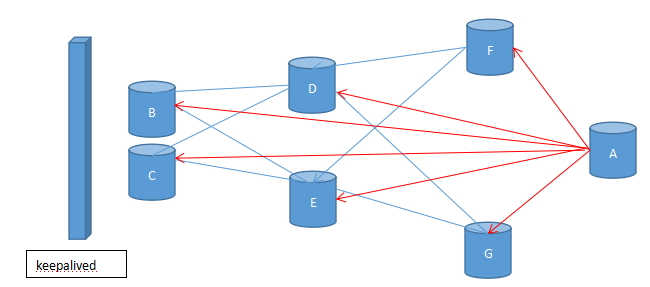

  图中：蓝线表示各个服务器之间通信

     红线表示puppetmaster主机向各个agent主机部署信道

A主机puppet-master主机：192.168.126.129

B主机做两种服务：keepalived高性能和nginx反代

            192.168.126.130

C主机做两种服务：keepalived高性能和nginx反代

            192.168.126.131

D主机tomcat服务：192.168.126.132

E主机tomcat服务：192.168.126.133

F主机memcached服务：192.168.126.134

G主机memcached服务：192.168.126.135

注意：各个主机必须时间同步

    此次安装puppet版本为3.8.7

一、配置puppet：master/agent建立安全通信

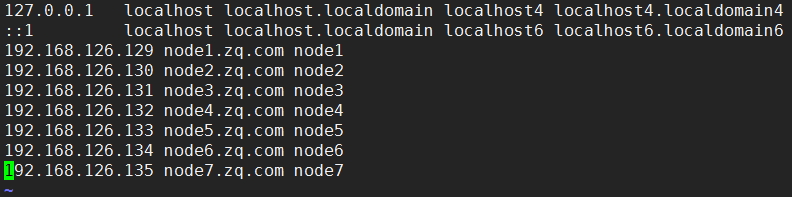

  1、将各个主机的主机名写入到/etc/hosts文件中，以便于域名解析



注意：将此文件内容分别写入各个主机的/etc/hosts文件中

  2、安装puppet服务所需要的包

   （1）在master主机上安装以下包

facter-2.4.6-1.el7.x86_64.rpm

puppet-3.8.7-1.el7.noarch.rpm

puppet-server-3.8.7-1.el7.noarch.rpm

   （2）在各个agent主机上安装以下包

      facter-2.4.6-1.el7.x86_64.rpm

puppet-3.8.7-1.el7.noarch.rpm

   3、修改配置文件

    （1）配置master主机：/etc/puppet/puppet.conf

      [main]

       …

       environmentpath = $confdir/environments（此配置文件只加上此句就行了）

       …

      [agent]

       …

    （2）配置agent主机：/etc/puppet/puppet.conf

      [main]

       …

       listen = true（开启监听端口默认为8139）

       environmet = production（运行于production环境,）

       …

      [agent]

       …

       server = node1.zq.com（设定以node1.zq.com主机位puppetmaster）

       …

    注意： environmet指令有三个值分别为：production，testing，development

      Agent主机设置的为那个环境，那么在master主机的/etc/puppet/environment/目录下必须有与环境名相同名字的目录。并且此目录下必须包含manifests和modules两个目录，在manitests目下有site.pp文件，里面包含向各个agent主机需要部署的服务，而modules目录下就各个服务的模块

  （3）配置agent主机：/etc/puppet/auth.conf

    加入以下段落：（表示允许master主机可以部署服务）

     path /run

method save

auth any

allow node1.zq.com

      注意：这几句指令必须在“path /”指令的前面

   4、签署CA认证,建立安全通信

     （1）master主机

       启动服务

       Systemctl  start  puppetmaster.service

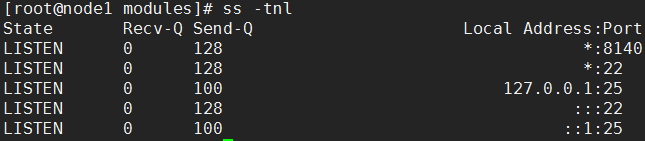

       查看8140端口已开启

     （2）在agent主机

        启动服务

        Systemctl  start  puppetagent.service

     （3）签署认证

       在master主机上认证

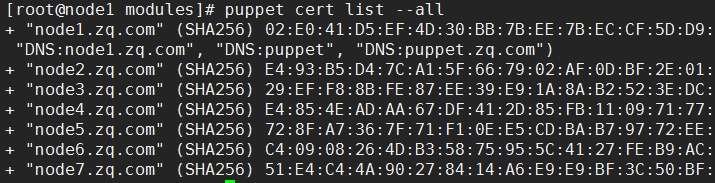

       执行：puppet cert list –all （查看agent的证书签署请求）

       执行：puppet cert sign –all (（签署所有的请求）



二、创建模块

   注意：我的此次试验是在production环境下作的

 创建前配置：

  创建目录文件

   mkdir -pv /etc/puppet/environments/production /{manifests,modules}

1、创建模块memcached

  (1)cd  /etc/puppet/environments/production/modules

  (2)mkdir  ./memcached/memcached/{manifests,templates,files,spec.lib,tests}

  (3)Vim ./manifests/init.pp(每一个模块中都必须含此文件)添加内容如下：

    class memcached {

         package{‘memcached’:

             ensure => latest,

            } ->

         service{‘memcached’:

             ensure => running,

             enable => true,

             }

     }

2、创建tomcat模块

    注意：为测试我为两台tomcat主机分别放了不同主页面

  (1)cd  /etc/puppet/environments/production/modules/

  (2)mkdir  ./tomcat/{manifests,templates,files,spec.lib,tests}

  (3)Vim ./tomcat/manifests/init.pp添加内容如下：

      class tomcat {

          package{[‘tomcat’,’tomcat-admin-webapps’,’tomcat-docs-webapp’,’tomcat-webapps’,’java-1.8.0-openjdk’]:

               ensure => latest,

              } ->

          exec{‘mkdir’:

            command => ‘mkdir -pv /var/lib/tomcat/webapps/test/{classes,lib,WEB_INF}’,

            path    => ‘/bin:/sbin:/usr/bin:/usr/sbin’,

            creats => ‘/var/lib/tomcat/webapps/test’,

              } ->

          service{‘tomcat’:

                ensure => running,

                enable => true,

              }

       }

    （4）创建子类(子类文件名必须和子类名相同)

       Vim  ./tomcat/manfests/mem.pp内容如下：

         class tomcat::mem inherits tomcat{

              file{‘server.xml’:

                path   => ‘/etc/tomcat/server.xml’,

                source => ‘puppet:///modules/tomcat/server_memcached.xml’,

                } ->

              file{‘javolution-5.4.3.1.jar’:

                path   => ‘/usr/share/tomcat/lib/javolution-5.4.3.1.jar’,

                source => ‘puppet:///modules/tomcat/javolution-5.4.3.1.jar’,

                } ->

              file{‘memcached-session-manager-tc7-2.1.1.jar’:

                path   => ‘/usr/share/tomcat/lib/memcached-session-manager-tc7-2.1.1.jar’,

                source => ‘puppet:///modules/tomcat/memcached-session-manager-tc7-2.1.1.jar’,

                } ->

              file{‘spymemcached-2.11.1.jar’:

                path   => ‘/usr/share/tomcat/lib/spymemcached-2.11.1.jar’,

                source => ‘puppet:///modules/tomcat/spymemcached-2.11.1.jar’,

               } ->

              file{‘memcached-session-manager-2.1.1.jar’:

                path   => ‘/usr/share/tomcat/lib/memcached-session-manager-2.1.1.jar’,

                source => ‘puppet:///modules/tomcat/memcached-session-manager-2.1.1.jar’,

                } ->

              file{‘msm-javolution-serializer-2.1.1.jar’:

                path   => ‘/usr/share/tomcat/lib/msm-javolution-serializer-2.1.1.jar’,

                source => ‘puppet:///modules/tomcat/msm-javolution-serializer-2.1.1.jar’,

                }

              case $ipaddress_ens32 {

                ‘192.168.126.132’: { $i = tomcata.jsp }

                ‘192.168.126.133’: { $i = tomcatb.jsp }

                 default: { $i = tomcata.jsp }

                } ->

              file{‘index.jsp’:

                 path   => ‘/var/lib/tomcat/webapps/test/index.jsp’,

                 source => “puppet:///modules/tomcat/$i”,

                }

        }

     （5）放置文件cd ./tomcat/files/

        javolution-5.4.3.1.jar

   msm-javolution-serializer-2.1.1.jar

   spymemcached-2.11.1.jar

   memcached-session-manager-2.1.1.jar

   memcached-session-manager-tc7-2.1.1.jar

   上面的文件问做session-server所需要的类文件

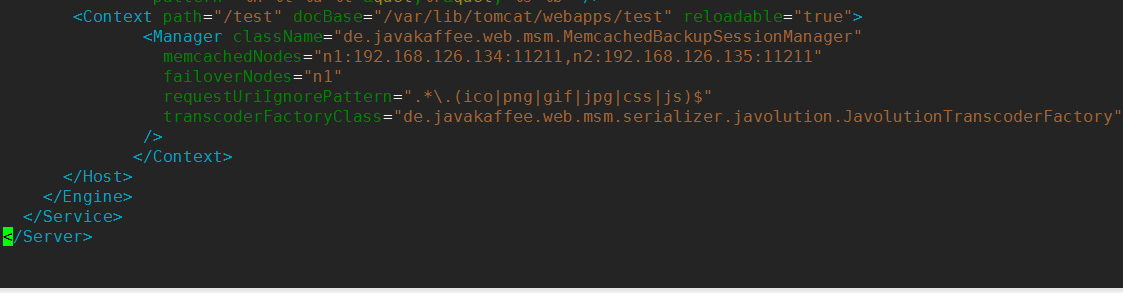

server_memcached.xml（主配置文件）在此文件中加入session配置

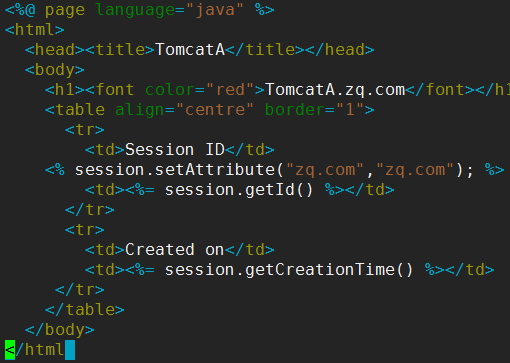

tomcata.jsp(tomcat1主机上的主页面)内容如下：

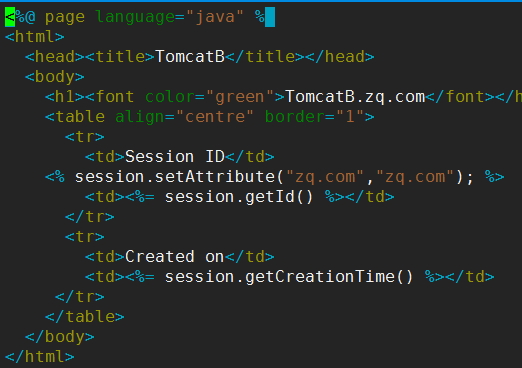

tomcatb.jsp（tomcat2主机上的主页面）



3、创建nginx模块

   (1)cd  /etc/puppet/environments/production/modules/

   (2)mkdir  ./nginx/{manifests,templates,files,spec.lib,tests}

   (3)Vim ./nginx/manifests/init.pp添加内容如下：

      class nginx {

           package{‘nginx’:

              ensure => latest,

             } ->

          service{‘nginx’:

              ensure => running,

              enable => true,

             }

       }

   (4)创建子类Vim ./nginx/manifests/proxy.pp添加内容如下：

        class nginx::proxy inherits nginx{

            file{‘nginx.conf’:

              path   => ‘/etc/nginx/nginx.conf’,

              source => ‘puppet:///modules/nginx/proxy.conf’,

             }

           Package[‘nginx’] -> File[‘nginx.conf’] ~> Service[‘nginx’]

     }

      (5)放置文件

       cd ./nginx/files/

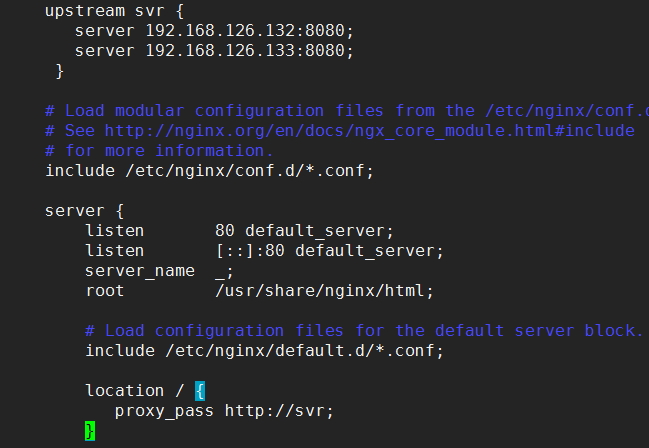

  proxy.conf



 4、创建keepalived模块（设置其虚拟IP：192.168.126.110）

   (1)cd  /etc/puppet/environments/production/modules/

   (2)mkdir  ./keepalived/{manifests,templates,files,spec.lib,tests}

   (3)Vim ./keepalived/manifests/init.pp添加内容如下：

       class keepalived {

            package{‘keepalived’:

                ensure => latest,

              } ->

           service{‘keepalived’:

                ensure => running,

                enable => true,

              }

       }

     (4)子类 vim ./keepalived/manifests/vip.pp内容如下：

        class keepalived::vip inherits keepalived{

              if $ipaddress_ens32 == ‘192.168.126.130’ {

             file{‘keepalived.conf’:

                  path   => ‘/etc/keepalived/keepalived.conf’,

                source => “puppet:///modules/keepalived/keepaliveda.conf”,

               }

            } else {

             file{‘keepalived.conf’:

                path   => ‘/etc/keepalived/keepalived.conf’,

                source => “puppet:///modules/keepalived/keepalivedb.conf”,

               }

            }

            file{‘notify.sh’:

               path   => ‘/etc/keepalived/notify.sh’,

              source => ‘puppet:///modules/keepalived/notify.sh’,

             }

       }

(5)放置文件

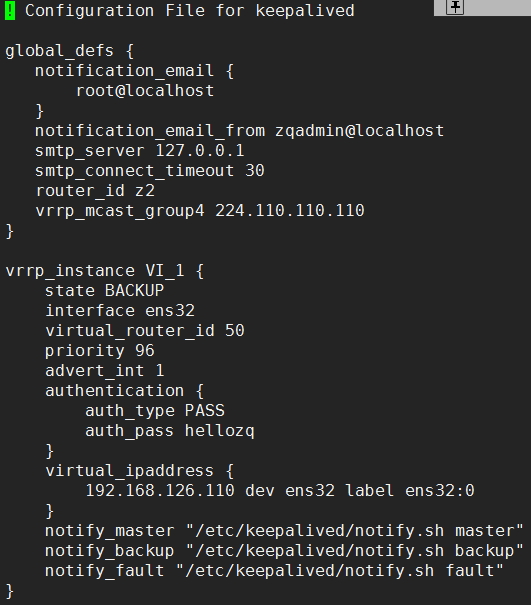

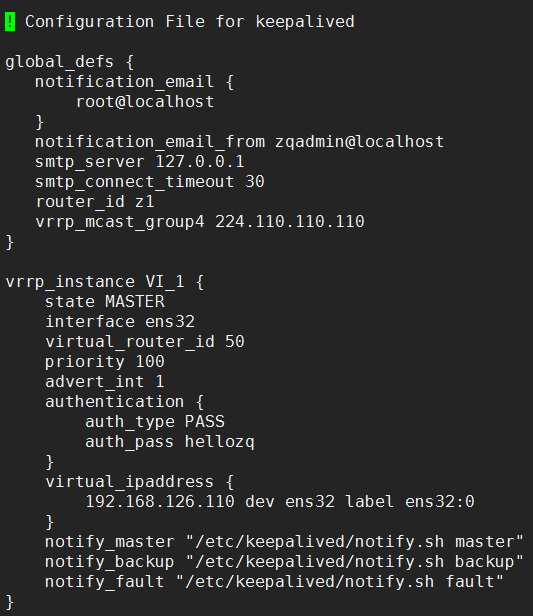

 keepaliveda.conf（keepalived主节点配置文件）



keepalivedb.conf （keepalived次节点配置文件）

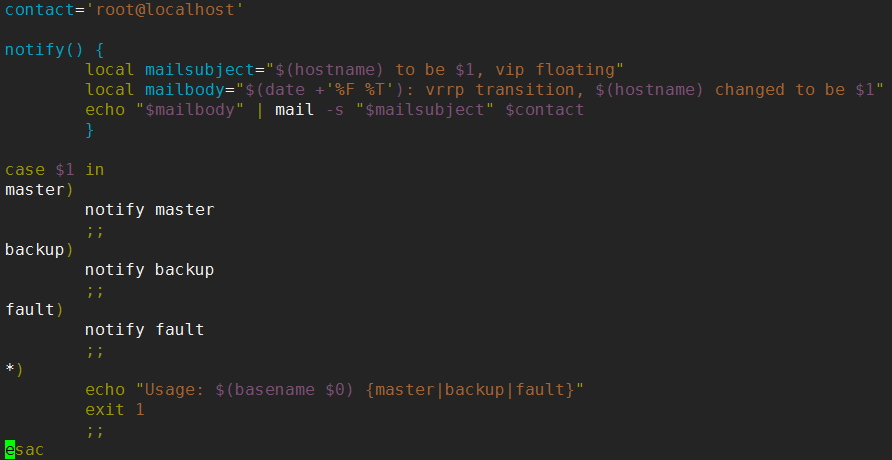

notify.sh（通知脚本）



三、在puppet-master主机部署

1、创建部署文件

  vim /etc/puppet/environment/production/manifets/site.pp内容如下：

   node ‘node2.zq.com’ {

       include nginx::proxy

       include keepalived::vip

       }

    node ‘node3.zq.com’ {

       include nginx::proxy

       include keepalived::vip

       }

    node ‘node4.zq.com’ {

       include tomcat::mem

        }

    node ‘node5.zq.com’ {

      include  tomcat::mem

       }

    node ‘node6.zq.com’ {

      include memcached

      }

    node ‘node7.zq.com’ {

      include memcached

      }

 2、执行部署

    puppet kick node2.zq.com

      puppet kick node3.zq.com

      puppet kick node4.zq.com

      puppet kick node5.zq.com

      puppet kick node6.zq.com

      puppet kick node7.zq.com

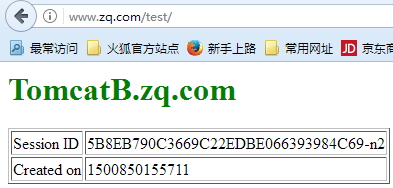

 四、测试：

           在测试主机的hosts文件中加入一条解析：

                 192.168.126.110  www.zq.com

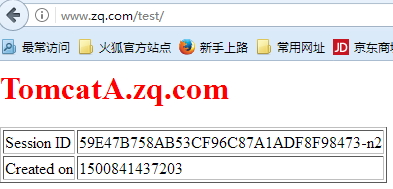

输入URL：www.zq.com/test





puppet部署成功
