搭建lnmp实现动静分离

LNMP代表的就是：Linux系统下Nginx+MySQL+PHP这种网站服务器架构。

（nginx主机）web 处理静态内容 172.16.250.149

（fpm server mariad bserver）处理动态内容 172.16.253.131

以上为两台CentOS7.3主机

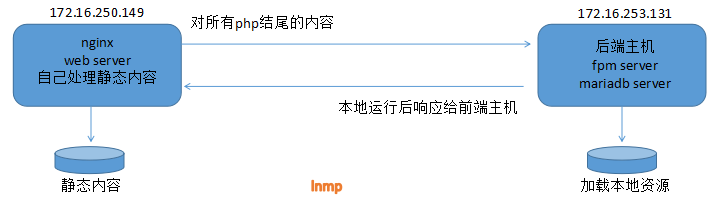

试验拓扑图如下：

搭建lnmp实现动静分离

===========================================================================

（fpm server mariad bserver） 172.16.253.131

#yum install php-fpm php-mysql php-mbstring php-mcrypt mariadb-server -y
下载phpMyAdmin-4.0.10.20-all-languages.tar.gz
#vim /etc/php-fpm.d/www.conf
listen = 0.0.0.0:9000
;listen.allowed_clients = 127.0.0.1
pm.max_children = 150

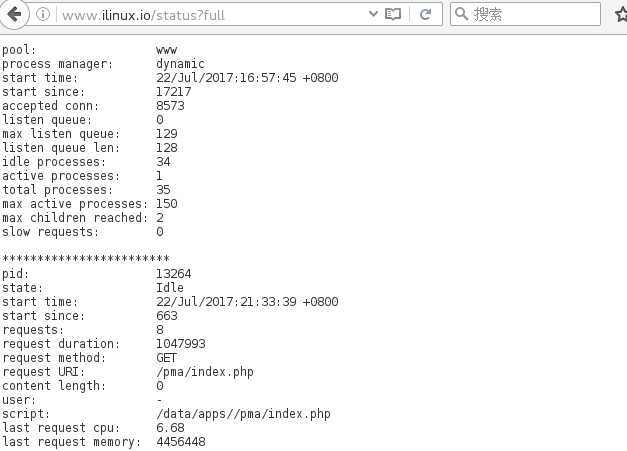

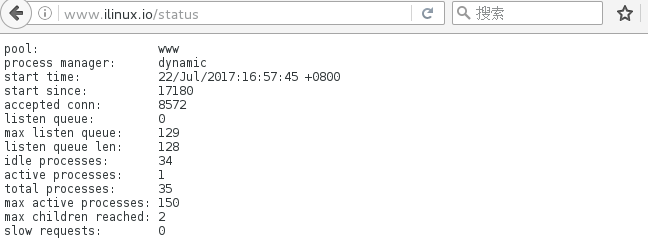

pm.status_path = /status
ping.path = /ping
#mkdir /var/lib/php/session
#chown apache:apache /var/lib/php/session
#systemctl start php-fpm.service
#ss -tnl | grep "9000"
LISTEN      0      128                          *:9000                         *:*
#mkdir /data/apps -pv

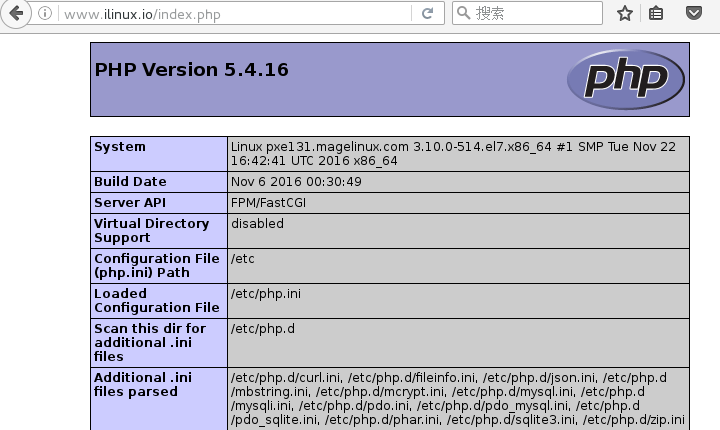

#vim /data/apps/index.php   #定义后端主页
<?php
        phpinfo();
?>

===========================================================================

（nginx主机）172.16.250.149

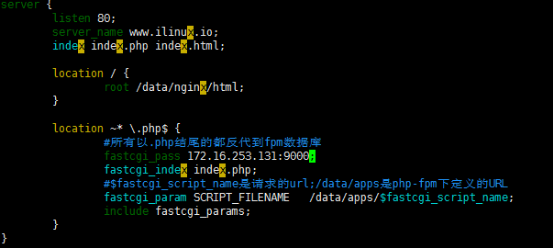

#vim /etc/nginx/conf.d/ilinux.conf

搭建lnmp实现动静分离

#vim /data/nginx/html/index.html #nginx server主页

<h1>Nginx server</h1>

搭建lnmp实现动静分离

===========================================================================

（fpm server mariad bserver） 172.16.253.131

#vim /etc/my.cnf.d/server.cnf

关闭地址解析

#systemctl start mariadb.service
#ss -tnl | grep "3306"
LISTEN     0      50           *:3306                     *:*
#mysql_secure_installation
Set root password? [Y/n] y  #是否设置密码
New password: #输入要设置的密码
Re-enter new password:
Remove anonymous users? [Y/n] y #是否删除匿名用户
Disallow root login remotely? [Y/n]n    #是否禁止管理员远程登录（为了试验方便，设置成不要，生成中禁止远程登录）
Remove test database and access to it? [Y/n]n   #删除测试数据库
Reload privilege tables now? [Y/n]y #重载
#tar xf phpMyAdmin-4.0.10.20-all-languages.tar.gz -C /data/apps/
#cd /data/apps/
#ln -sv phpMyAdmin-4.0.10.20-all-languages pma
#cd pma/
#vim config.inc.php
$cfg['blowfish_secret'] = 'aqwer8b7c6d'; /* YOU MUST FILL IN THIS FOR COOKIE AUTH! */
#scp phpMyAdmin-4.0.10.20-all-languages.tar.gz 172.16.250.149:/root/

===========================================================================

（nginx主机）172.16.250.149

#tar xf phpMyAdmin-4.0.10.20-all-languages.tar.gz -C /data/nginx/html/
#cd /data/nginx/html/
#ln -sv phpMyAdmin-4.0.10.20-all-languages pma

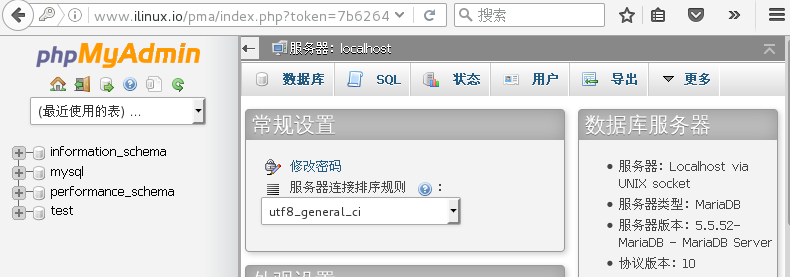

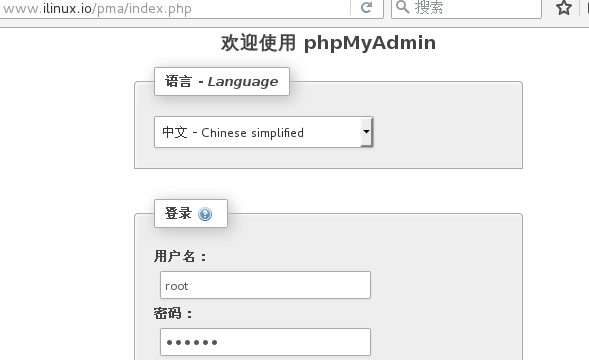

搭建lnmp实现动静分离

===========================================================================

实验相关扩展

（nginx主机）172.16.252.245

（nginx代理主机）172.16.250.149

（mariadb server）172.16.253.131

以上为三台CentOS7.3主机

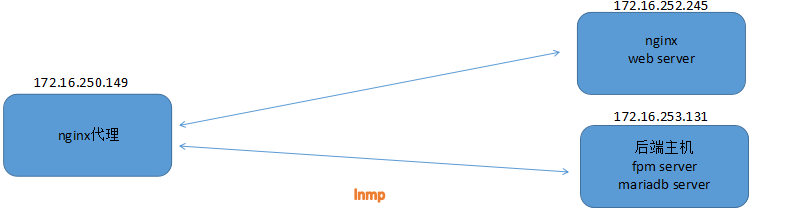

试验拓扑图如下：

搭建lnmp实现动静分离

===========================================================================

（nginx主机）172.16.252.245

#yum install nginx -y
#mkdir /data/nginx/html -pv
下载phpMyAdmin-4.0.10.20-all-languages.tar.gz
#tar xf phpMyAdmin-4.0.10.20-all-languages.tar.gz -C /data/nginx/html/
#cd /data/nginx/html/
#ln -sv phpMyAdmin-4.0.10.20-all-languages pma

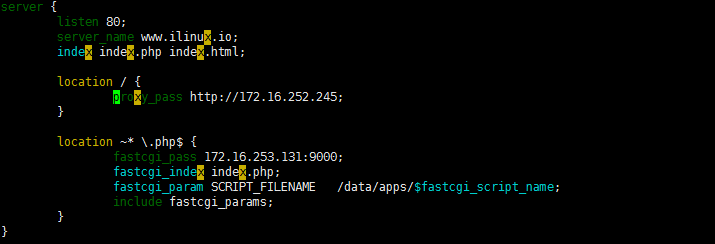

#vim /etc/nginx/nginx.conf

搭建lnmp实现动静分离
