构建一个高可用的Nginx集群

实验目的：

构建一个高可用的Nginx集群。

实验要求：

1、基于nat结构实现；

2、实现高可用；

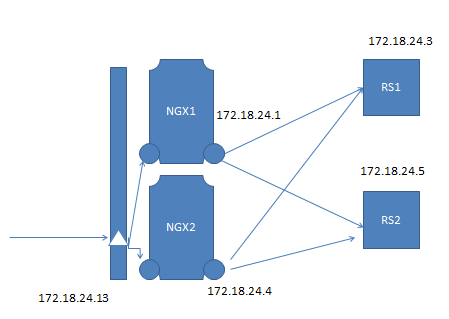

实验拓扑图形：

实验步骤：

1、  按图配置各个网卡地址；

2、  设置Nginx主机（下面带#的部分为从所需要的配置，其他则一样）

Yum install httpd nginx

Vim /etc/httpd/conf/httpd.conf

Listen 80 àListen
8080

Vim /etc/nginx/nginx.conf

http{


upstream websrvs {


server 172.18.24.3:80;


server 172.18.24.5:80;


server 127.0.0.1:8080 backup;

    }

}

vim /etc/nginx/conf.d/default.conf


location / {


proxy_pass http://websrvs;

}

vim /etc/keepalived/keepalived.conf

global_defs {


notification_email {


root@localhost

   }


notification_email_from keeplived@localhost


smtp_server 127.0.0.1


smtp_connect_timeout 30


router_id tes1t


vrrp_mcast_group4 224.0.100.24

}

vrrp_script ‘ngxstatus’ {


script “killall -0 nginx && exit 0 || exit 1”


interval 1


weight -5

}

vrrp_instance myr1 {


state MASTER
#BACKUP


interface eth0
#ens38


virtual_router_id 67


priority 100                   #98


advert_int 1


authentication {


auth_type PASS


auth_pass UIpYPPDI

    }


track_script {


 ngxstatus

    }


virtual_ipaddress {


172.18.24.13/16 dev eth0
#ens38

    }


notify_master “/etc/keepalived/notify.sh master”


notify_backup “/etc/keepalived/notify.sh backup”


notify_fault “/etc/keepalived/notify.sh fault”

}

Systemctl start httpd

Systemctl start nginx

Systemctl start keepalived

3、  配置RS主机

Yum install httpd

Vim /var/www/html/index.html

4、  检测：curl http://172.18.24.13

检测结果：实现高可用Nginx集群。
