搭建双主模型lpvs的高可用集群

一、实验要求：

1、基于LVS-DR模型上实践；

2、调度器高可用（双主模型）；

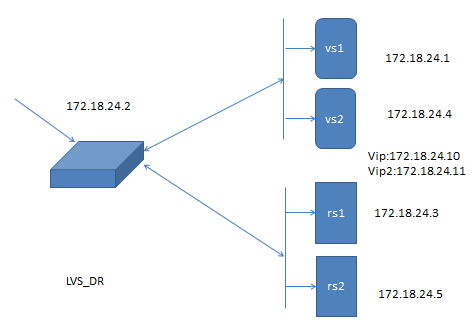

二、实验拓扑图：

三、实验步骤：

1、  设置RS

(a)设置http主页

Yum install httpd

Vim /var/www/html/index.html

<h1>172.18.24.3 server 1或者172.18.24.5
server 2</h1>

(b)设置RS的VIP

Vim setRS.sh

#!/bin/bash

vip=172.18.24.10

vip2=172.18.24.11

mask=’255.255.255.255′

iface=’lo:0’

iface2=’lo:1’

case $1 in

start)

         echo
1 > /proc/sys/net/ipv4/conf/all/arp_ignore

         echo
1 > /proc/sys/net/ipv4/conf/lo/arp_ignore

         echo
2 > /proc/sys/net/ipv4/conf/all/arp_announce

         echo
2 > /proc/sys/net/ipv4/conf/lo/arp_announce

         ifconfig
lo:0 $vip netmask $mask broadcast $vip up

         route
add -host $vip dev $iface

         ifconfig
lo:0 $vip2 netmask $mask broadcast $vip2 up

         route
add -host $vip2 dev $iface2

                                               ;;

stop)

         ifconfig
$iface down

         ifconfig
$iface2 down

echo 0 > /proc/sys/net/ipv4/conf/all/arp_ignore

         echo
0 > /proc/sys/net/ipv4/conf/lo/arp_ignore

         echo
0 > /proc/sys/net/ipv4/conf/all/arp_announce

         echo
0 > /proc/sys/net/ipv4/conf/lo/arp_announce

                                               ;;

*)

         echo
“Usage $(basename $0) start|stop”

         exit
1

                                               ;;

         esac

在RS上运行脚本 setRS.sh start

重启httpd服务

2、  配置VS

Yum install httpd Keepalived

Vim /var/www/html/inde.html

Sorry server 1 或者sorry
server2

(a) 设置VS1主从信息

global_defs {


notification_email {


root@localhost

   }




notification_email_from keeplived@localhost


smtp_server 127.0.0.1


smtp_connect_timeout 30


router_id test1


vrrp_mcast_group4 224.0.100.24

}

vrrp_instance myr1 {


state MASTER


interface eth0


virtual_router_id 67


priority 100


advert_int 1


authentication {


auth_type PASS


auth_pass UIpYPPDI

}

vrrp_instance
myr2 {

    state BACKUP

    interface eth0

    virtual_router_id 68

    priority 98

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass UIpYPPDi

    }

    virtual_ipaddress {

        172.18.24.11/16 dev eth0

    }

}


virtual_ipaddress {


172.18.24.10/16 dev eth0

    }


notify_master “/etc/keepalived/notify.sh master”


notify_backup “/etc/keepalived/notify.sh backup”


notify_fault “/etc/keepalived/notify.sh fault”

}



virtual_server 172.18.24.10 80 {


delay_loop 6


lb_algo wrr


lb_kind DR


protocol TCP


sorry_server 127.0.0.1 80


real_server 172.18.24.3 80 {


weight 1


HTTP_GET {


url {

              path /

              status_code 200


}


connect_timeout 3


nb_get_retry 3


delay_before_retry 3


}

}

    real_server 172.18.24.5 80 {

        weight 1

        HTTP_GET {

            url {

              path /

              status_code 200

            }

            connect_timeout 3

            nb_get_retry 3

            delay_before_retry 3

        }

    }

}

(b)设置VS2主从信息

global_defs {


notification_email {


root@localhost

   }




notification_email_from keeplived@localhost


smtp_server 127.0.0.1


smtp_connect_timeout 30


router_id test4


vrrp_mcast_group4 224.0.100.24

}

vrrp_instance myr1 {


state   BACKUP


interface ens38


virtual_router_id 67


priority 98


advert_int 1


authentication {


auth_type PASS


auth_pass UIpYPPDI

}

vrrp_instance
myr2 {

    state MASTER

    interface ens38

    virtual_router_id 68

    priority 100

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass UIpYPPDi

    }

    virtual_ipaddress {

        172.18.24.11/16 dev  ens38

    }

}


virtual_ipaddress {

    172.18.24.10/16 dev ens38

    }


notify_master “/etc/keepalived/notify.sh master”


notify_backup “/etc/keepalived/notify.sh backup”


notify_fault “/etc/keepalived/notify.sh fault”

}



virtual_server 172.18.24.11 80 {


delay_loop 6


lb_algo wrr


lb_kind DR


protocol TCP


sorry_server 127.0.0.1 80


real_server 172.18.24.3 80 {


weight 1


HTTP_GET {


url {

              path /

              status_code 200


}


connect_timeout 3


nb_get_retry 3


delay_before_retry 3


}

}

    real_server 172.18.24.5 80 {

        weight 1

        HTTP_GET {

            url {

              path /

              status_code 200

            }

            connect_timeout 3

            nb_get_retry 3

            delay_before_retry 3

        }

    }

}

(c)Systemctl start httpd  Systemctl start keepalived

3、测试 curl http://172.18.24.10  curl http://172.18.24.11

检测结果：不论是访问172.18.24.10还是172.18.24.11，最终显示以下的轮询结果，

<h1>172.18.24.3 server 1</h1>或者<h1>172.18.24.5
server 2</h1>
